The rf motor remote control is a reversing controller, with forward-reverse-stop capability. You can rotate the motor in forward or reverse direction with the transmitter from any place within reliable distance. With time delay function, the working time of forward / reverse rotation can be adjusted from 10 to 60 seconds. It is suitable for controlling dc motors of rolling blinds / doors, projection screens, awnings, pumps, winches, conveyors or other appliances. Operation video please visit http://www.youtube.com/watch?v=KQsiqxMryeo
Control dc motors of rolling blinds / doors, projection screens, awnings, pumps, winches, conveyors or electrical devices.
You can rotate the motor in the forward or reverse direction with the transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use two or more receivers in same place, you can set them with different codes.
Power Supply (Operating Voltage): DC12V±1V (S1FD-DC12), DC9V±1V (S1FD-DC09), DC24V±1V (S1FD-DC24)
Working Voltage Range of Relay: DC12V
Case Size: 110mm x 65mm x 40mm
Maximum Current: 5A
Transmitter:
Model No.: CA-4
Remote Control Distance: 50m / 150ft (theoretically)
Encode: Fixed code by soldering
Unit size: 88mm x 46mm x 20mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage:
Connect power supply DC 12V to the terminals “IN”. Connect DC motor to the “OUT”. You can exchange the output wires of motor to change the rotating direction of motor.
Press button ▲: Light 1 shines, terminal "OUT" output ＋ DC 12V (1: ＋, 2: －), motor rotates in forward direction, and it will stop after a certain delay time. Press button ▼: Light 2 shines, terminal "OUT" output － DC 12V (1: －, 2: ＋), motor rotates in reverse direction, and it will stop after a certain delay time.
The delay time of forward / reverse rotation can be adjusted from 10 to 60 seconds. Turn R1/R2 clockwise, prolong the delay time. Turn R1/R2 anti-clockwise, shorten the delay time. When you press button ▲ or button ▼, the motor starts to rotate; it will stop after the delay time is expired.
When the rotation is overdone, if the restrictive switch S1 or S2 is activated, the motor will stop automatically.
After press button ▲, you must press button ■ to stop motor firstly, and then press button ▼.
If you pull out the Jumper of the receiver, you can press directly button ▼ after press button ▲.
Package Include:

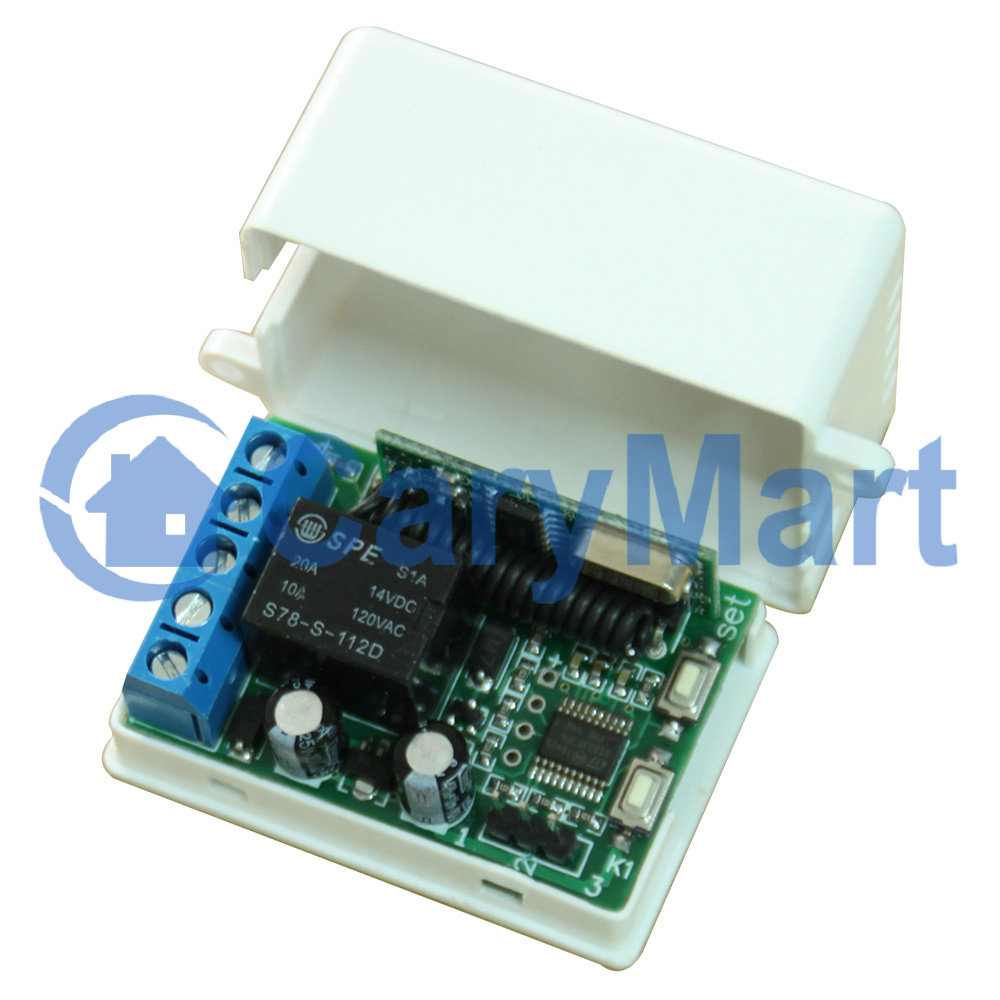

1 x Receiver: S1FD-DC09 / S1FD-DC12 / S1FD-DC24 (Inversion Control Mode / DC12V)
1 x Transmitter: CA-4
1 x User manual
Note:
The theoretical distance is 50m, which shall be operated in an open ground; no barriers and no any interference. But in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance can not reach 50m. If you need longer range, please choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here; Or you can add the External Extend Antenna (model: 0020909) on the receiver for improve the range - Click here.
