Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz / 433MHz
Receiver:
Model No.: S2M-DC09 / S2M-DC12 / S2M-DC24
Channel: 2 CH
Control Mode: Momentary (Press and hold -> On; Release -> Off)
Coding Type: Fixed code
Coding Setting: By soldering
Power Supply (Operating Voltage): DC12V±1V (S2M-DC12), DC9V±1V (S2M-DC09), DC24V±1V (S2M-DC24)
Working Voltage Range of Relay: AC110~240V or DC0~28V
PCB size: 68mm x 48mm x 20mm
Case size: 75mm x 55mm x 30mm
Maximum Working Current: 10A / each channel
Usage:

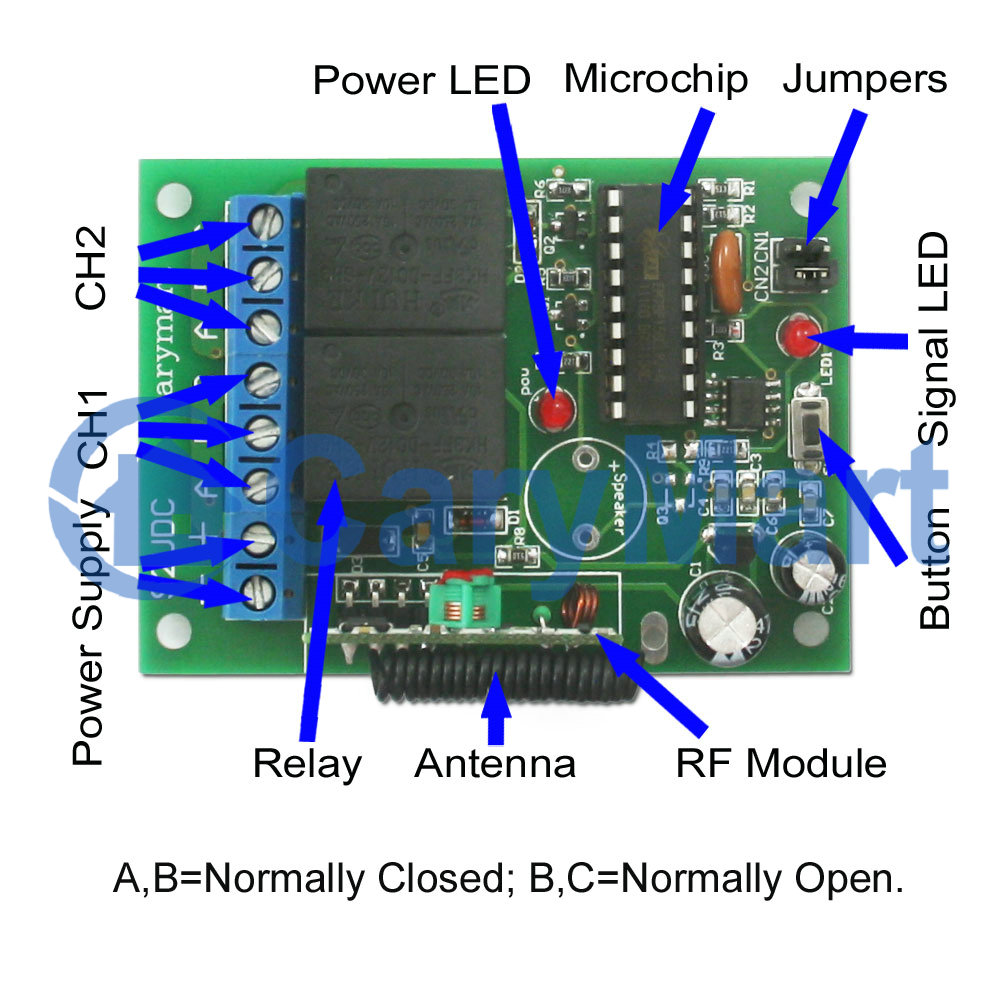

Initial state: A, B = Normally Closed; B, C = Normally Open. 1) Press and hold button 1: Turn on relay 1 (connect B and C, disconnect A and B) 2) Release button 1: Turn off relay 1 (disconnect B and C, connect A and B) 3) Press and hold button 2: Turn on relay 2 (connect B and C, disconnect A and B) 4) Release button 2: Turn off relay 2 (disconnect B and C, connect A and B)
Package Include:
1 x Receiver: S2M-DC09 / S2M-DC12 / S2M-DC24 (2 Channel / Momentary Control Mode)
