1CH AC110V 220V RF Momentary Remote Control Switch 315MHz / 433MHz

• Details

 This ac power 1 channel rf momentary remote control switch works with momentary mode. Press and hold the remote button, turn on the electrical device; release the button, turn off the device. Control lights, motors, fans, electrically operated doors / locks / windows / blinds / cars or other electrical devices.

				Manual

Feature:

• RF wireless control, easy to install.
• Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or other electrical devices.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 315MHz / 433MHz

Receiver:

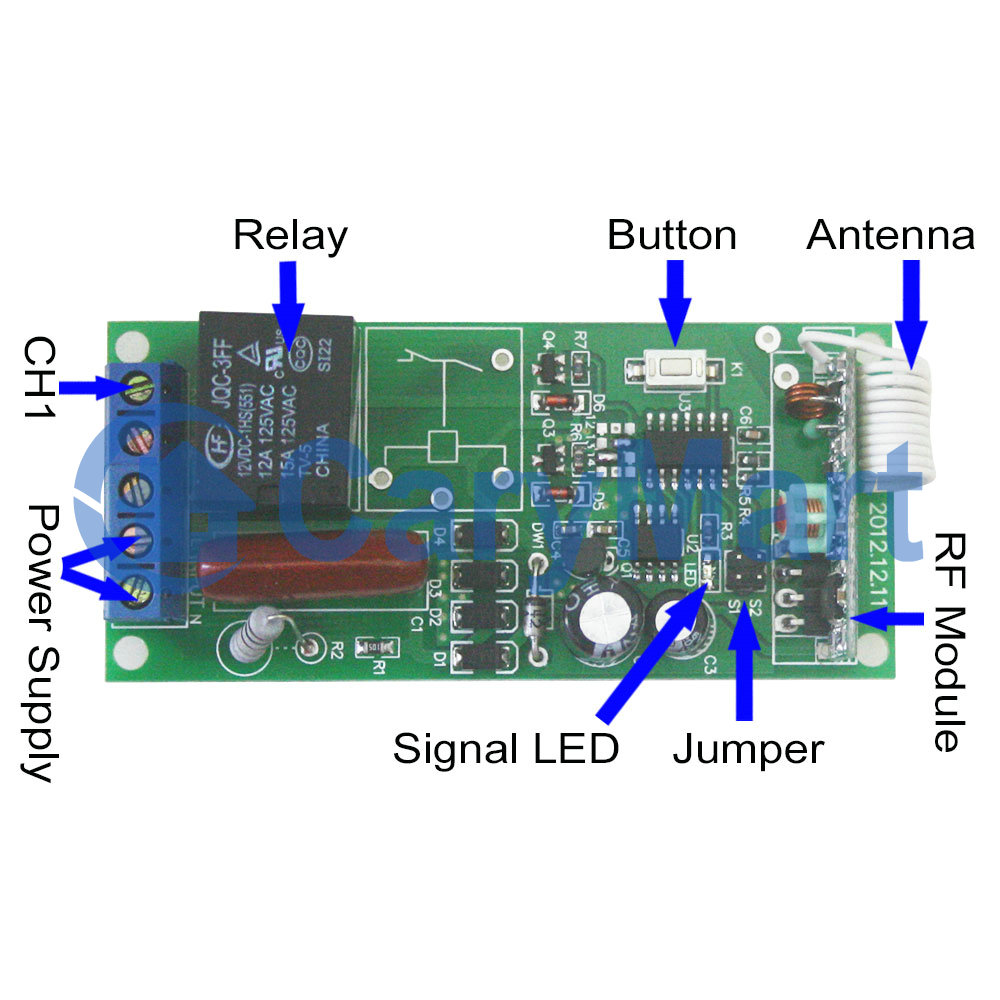

• Model No.: S1M-AC110 / S1M-AC220
• Channel: 1 CH
• Control Mode: Momentary (Press and hold -> On; Release -> Off)
• Coding Type: Fixed code
• Coding Setting: By soldering
• Power Supply (Operating Voltage): AC100~120V (S1M-AC110), AC200~240V (S1M-AC220)
• PCB Size: 80mm x 35mm x 14mm
• Case Size: 100mm x 40mm x 24mm
• Maximum Working Current: 4A

Transmitter:

• Model No.: C-1
• Channel: 1 CH
• Remote Control Distance: 100m / 300ft (theoretically)
• Encode: Fixed code by soldering
• Unit Size: 58mm x 39mm x 16mm
• Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage:

• Press and hold button: Turn on relay, terminal 3 and 4 output AC power.
• Release button: Turn off relay, terminal 3 and 4 no output.

Package Include:

• 1 x Receiver: S1M-AC110 / S1M-AC220 (1 Channel / Momentary Control Mode)
• 2 x Transmitter: C-1
• 1 x User manual

Note:

• The theoretical distance is 100m, which shall be operated in an open ground; no barriers and no any interference. But in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance can not reach 100m. If you need longer range, please choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here; Or you can add the External Extend Antenna (model: 0020909) on the receiver to extend the range - Click here.
