This 2 channel ac rf momentary remote control set works with momentary mode. Press and hold the remote button, switch on the electrical devices; release the button, switch off the electrical devices. Applications include light remote control, motor remote control, electric door / window remote control, etc. Operation video please visit http://www.youtube.com/watch?v=Ip-sn62cHiQ.
Control Lights, Motors, Fans, electrically operated Doors / Locks / Windows / Blinds / Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz / 433MHz

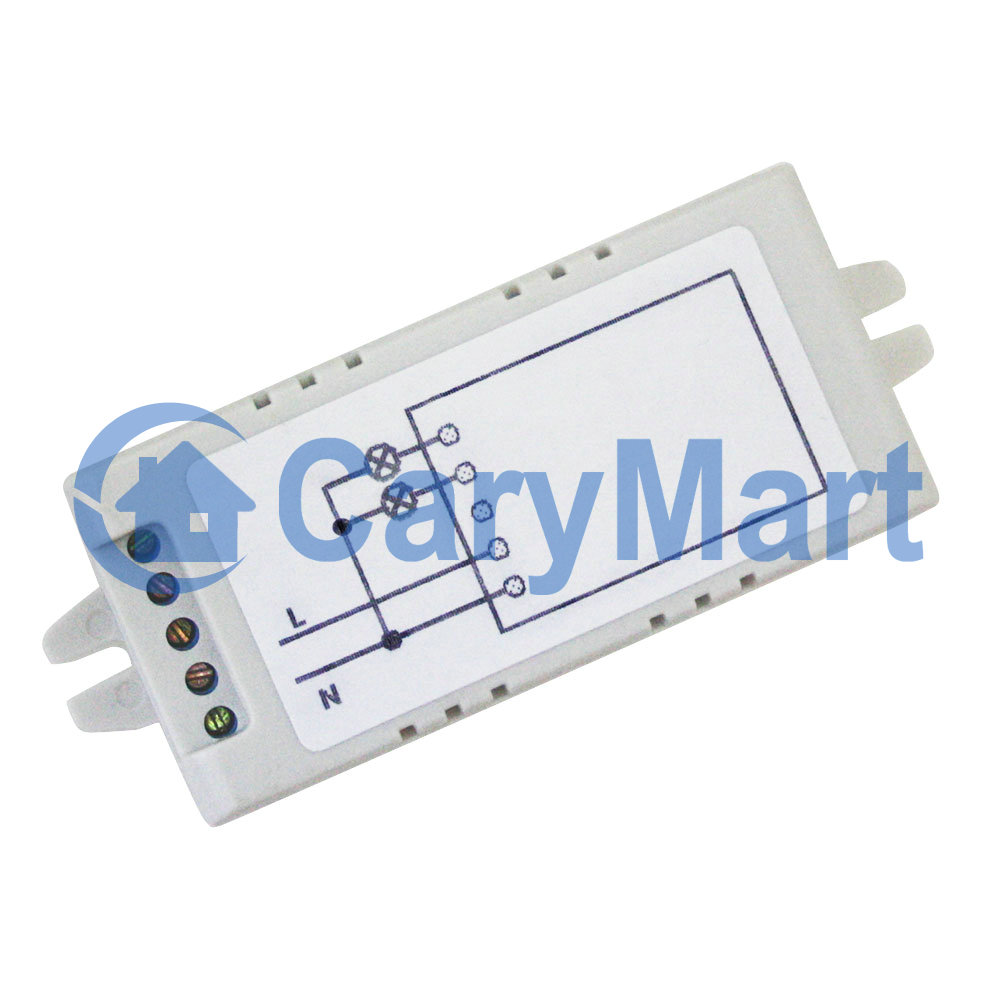

Receiver:
Model No.: S2M-AC110 / S2M-AC220
Channel: 2 CH
Control Mode: Momentary (Press and hold -> On; Release -> Off)
Coding Type: Fixed code
Coding Setting: By soldering
Power Supply (Operating Voltage): AC100~120V (S2M-AC110), AC200~240V (S2M-AC220)
PCB Size: 80mm x 35mm x 14mm
Case Size: 100mm x 40mm x 24mm
Maximum Working Current: 4A / each channel
Transmitter:
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by soldering
Unit Size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Usage:
Press and hold button 1: Turn on relay 1, terminal 3 and 4 output AC power.
Release button 1: Turn off relay 1, terminal 3 and 4 no output.
Press and hold button 2: Turn on relay 2, terminal 3 and 5 output AC power.
Release button 2: Turn off relay 2, terminal 3 and 5 no output.
Package Include:
1 x Receiver: S2M-AC110 / S2M-AC220 (2 Channel / Momentary Control Mode)
2 x Transmitter: C-2
1 x User manual
Note:
The theoretical distance is 100m, which shall be operated in an open ground; no barriers and no any interference. But in actual operation, it is hindered by trees, walls or other obstacles, or interfered by other signals. Therefore, the actual distance can not reach 100m. If you need longer range, please choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here; Or you can add the External Extend Antenna (model: 0020909) on the receiver to extend the range - Click here.
